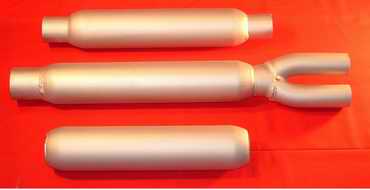

Aluminized Glass Packs
100% aluminized glass packs with louvered cores and long-strand high-temp fiberglass. Available with 3″, 3-1/2″, 4″ and 5″ shells, and 1-3/4″, 2″, 2-1/4″, 2-1/2″, 3″, 4″ cores. Glass packs with ends are expandable. Expansion joint prevents premature core breakage. Stainless steel (polished or not) and steel glass packs are available.
| Aluminized Part # | Shell | Core size | Body | OAL | Inlet/outlet |
| 2612500 | 3″ | 1-3/4″ | 12″ | 12″ | blank |
| 2612501 | 3″ | 1-3/4″ | 12″ | 18″ | 2″ straight |
| 2612575 | 3″ | 1-3/4″ | 12″ | 18″ | 1-3/4″ straight |
| 2615500 | 3″ | 1-3/4″ | 15″ | 15″ | blank |
| 2615501 | 3″ | 1-3/4″ | 15″ | 21″ | 2″ straight |
| 2615575 | 3″ | 1-3/4″ | 15″ | 21″ | 1-3/4″ straight |
| 2618500 | 3″ | 1-3/4″ | 18″ | 18″ | blank |
| 2618501 | 3″ | 1-3/4″ | 18″ | 24″ | 2″ straight |
| 2618575 | 3″ | 1-3/4″ | 18″ | 24″ | 1-3/4″ straight |
| 3512500 | 3-1/2″ | 2″ | 12″ | 12″ | blank |
| 3512501 | 3-1/2″ | 2″ | 12″ | 18″ | 2″ straight |
| 3512502 | 3-1/2″ | 2″ | 12″ | 18″ | 2-1/4″ straight |
| 3512541 | 3-1/2″ | 2″ | 12″ | 18″ | 2″ single offset |
| 3512542 | 3-1/2″ | 2″ | 12″ | 18″ | 2-1/4″ single offset |
| 3518500 | 3-1/2″ | 2″ | 18″ | 18″ | blank |
| 3518501 | 3-1/2″ | 2″ | 18″ | 24″ | 2″ straight |
| 3518502 | 3-1/2″ | 2″ | 18″ | 24″ | 2-1/4″ straight |
| 3518541 | 3-1/2″ | 2″ | 18″ | 24″ | 2″ single offset |
| 3518542 | 3-1/2″ | 2″ | 18″ | 24″ | 2-1/4″ single offset |
| 3518561 | 3-1/2″ | 2″ | 18″ | 24″ | 2″ double offset |
| 3518562 | 3-1/2″ | 2″ | 18″ | 24″ | 2-1/4″ double offset |
| 3524500 | 3-1/2″ | 2″ | 24″ | 24″ | blank |
| 3524501 | 3-1/2″ | 2″ | 24″ | 30″ | 2″ straight |
| 3524541 | 3-1/2″ | 2″ | 24″ | 30″ | 2″ single offset |
| 3524561 | 3-1/2″ | 2″ | 24″ | 30″ | 2″ double offset |
| 3530500 | 3-1/2″ | 2″ | 30″ | 30″ | blank |
| 3530501 | 3-1/2″ | 2″ | 30″ | 36″ | 2″ straight |
| 4012500 | 4″ | 2-1/4″ | 12″ | 12″ | blank |
| 4012502 | 4″ | 2-1/4″ | 12″ | 18″ | 2-1/4″ straight |
| 4012503 | 4″ | 2-1/4″ | 12″ | 18″ | 2-1/2″ straight |
| 4015500 | 4″ | 2-1/4″ | 15″ | 15″ | blank |
| 4015502 | 4″ | 2-1/4″ | 15″ | 21″ | 2-1/4″ straight |
| 4018500 | 4″ | 2-1/4″ | 18″ | 18″ | blank |
| 4018502 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ straight |
| 4018503 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/2″ straight |
| 4018542 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ single offset |
| 4018562 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ double offset |
| 4024500 | 4″ | 2-1/4″ | 24″ | 24″ | blank |
| 4024502 | 4″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ straight |
| 4024503 | 4″ | 2-1/4″ | 24″ | 30″ | 2-1/2″ straight |
| 4030500 | 4″ | 2-1/4″ | 30″ | 30″ | blank |
| 4030502 | 4″ | 2-1/4″ | 30″ | 36″ | 2-1/4″ straight |
| 4030503 | 4″ | 2-1/4″ | 30″ | 36″ | 2-1/2″ straight |
| 4512500 | 4″ | 2-1/2″ | 12″ | 12″ | blank |
| 4512503 | 4″ | 2-1/2″ | 12″ | 18″ | 2-1/2″ straight |
| 4515500 | 4″ | 2-1/2″ | 15″ | 15″ | blank |
| 4515503 | 4″ | 2-1/2″ | 15″ | 21″ | 2-1/2″ straight |
| 4518500 | 4″ | 2-1/2″ | 18″ | 18″ | blank |
| 4518503 | 4″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ straight |
| 4530500 | 4″ | 2-1/2″ | 30″ | 30″ | blank |
| 4530503 | 4″ | 2-1/2″ | 30″ | 36″ | 2-1/2″ straight |
| 5012500 | 4″ | 3″ | 12″ | 12″ | blank |
| 5012504 | 4″ | 3″ | 12″ | 18″ | 3″ straight |
| 5012526 | 4″ | 2-1/2″ | 12″ | 24″ | 2-1/2″ in-dual 2-1/4″ |
| 5012530 | 4″ | 3″ | 12″ | 24″ | 3″ in-dual 2-1/4″ |
| 5015500 | 4″ | 3″ | 15″ | 15″ | blank |
| 5015504 | 4″ | 3″ | 15″ | 21″ | 3″ straight |
| 5020500 | 4″ | 3″ | 20″ | 20″ | blank |
| 5020504 | 4″ | 3″ | 20″ | 26″ | 3″ straight |
| 5020526 | 4″ | 2-1/2″ | 20″ | 32″ | 2-1/2″ in-dual 2-1/4″ |
| 5020530 | 4″ | 3″ | 20″ | 32″ | 3″ in-dual 2-1/4″ |
| 5024500 | 4″ | 3″ | 24″ | 24″ | blank |
| 5024504 | 4″ | 3″ | 24″ | 30″ | 3″ straight |
| 5030500 | 4″ | 3″ | 30″ | 30″ | blank |
| 5030504 | 4″ | 3″ | 30″ | 36″ | 3″ straight |
| 5024-004AL | 5″ | 4″ | 24″ | 24″ | blank |
| 5024-114AL | 5″ | 4″ | 24″ | 30″ | 4″ straight |
Stainless Steel Glass Packs
100% stainless glass packs with louvered cores and long-strand high-temp fiberglass. Available with 3″, 3-1/2″, 4″ and 5″ shells, and 1-3/4″, 2″, 2-1/4″, 2-1/2″, 3″, 4″ cores. Glass packs with ends are expandable. Expansion joint prevents premature core breakage. These come bright annealed but unpolished 304 stainless steel ends and necks. Louvered cores are 409 stainless steel for heat tolerance. Special lengths and sizes may be ordered. Most of these items are not stocked and may require additional lead time, our popular numbers are listed below. Polishing by us is available at additional cost.
| Stainless Steel Part # | Shell | Core size | Body | OAL | Inlet/outlet |
| 3012900 | 3″ | 2″ | 12″ | 12″ | blank |
| 3012901 | 3″ | 2″ | 12″ | 18″ | 2″ straight |
| 3018900 | 3″ | 2″ | 18″ | 18″ | blank |
| 3018901 | 3″ | 2″ | 18″ | 24″ | 2″ straight |
| 3018941 | 3″ | 2″ | 18″ | 24″ | 2″ single offset |
| 3018961 | 3″ | 2″ | 18″ | 24″ | 2″ double offset |
| 3020900 | 3″ | 2″ | 20″ | 20″ | blank |
| 3020901 | 3″ | 2″ | 20″ | 26″ | 2″ straight |
| 3020941 | 3″ | 2″ | 20″ | 26″ | 2″ single offset |
| 3020961 | 3″ | 2″ | 20″ | 26″ | 2″ double offset |
| 3024900 | 3″ | 2″ | 24″ | 24″ | blank |
| 3024901 | 3″ | 2″ | 24″ | 30″ | 2″ straight |
| 3024941 | 3″ | 2″ | 24″ | 30″ | 2″ single offset |
| 3024961 | 3″ | 2″ | 24″ | 30″ | 2″ double offset |
| 3030900 | 3″ | 2″ | 30″ | 30″ | blank |
| 3030901 | 3″ | 2″ | 30″ | 36″ | 2″ straight |
| 3512900 | 3-1/2″ | 2″ | 12″ | 12″ | blank |
| 3512901 | 3-1/2″ | 2″ | 12″ | 18″ | 2″ straight |
| 3518900 | 3-1/2″ | 2″ | 18″ | 18″ | blank |
| 3518901 | 3-1/2″ | 2″ | 18″ | 24″ | 2″ straight |
| 3518941 | 3-1/2″ | 2″ | 18″ | 24″ | 2″ single offset |
| 3518961 | 3-1/2″ | 2″ | 18″ | 24″ | 2″ double offset |
| 3520900 | 3-1/2″ | 2″ | 20″ | 20″ | blank |
| 3520901 | 3-1/2″ | 2″ | 20″ | 26″ | 2″ straight |
| 3520941 | 3-1/2″ | 2″ | 20″ | 26″ | 2″ single offset |
| 3520961 | 3-1/2″ | 2″ | 20″ | 26″ | 2″ double offset |
| 3524900 | 3-1/2″ | 2″ | 24″ | 24″ | blank |
| 3524901 | 3-1/2″ | 2″ | 24″ | 30″ | 2″ straight |
| 3524941 | 3-1/2″ | 2″ | 24″ | 30″ | 2″ single offset |
| 3524961 | 3-1/2″ | 2″ | 24″ | 30″ | 2″ double offset |
| 3530900 | 3-1/2″ | 2″ | 30″ | 30″ | blank |
| 3530901 | 3-1/2″ | 2″ | 30″ | 36″ | 2″ straight |
| 3612900 | 3-1/2″ | 2-1/4″ | 12″ | 12″ | blank |
| 3612902 | 3-1/2″ | 2-1/4″ | 12″ | 18″ | 2-1/4″ straight |
| 3618900 | 3-1/2″ | 2-1/4″ | 18″ | 18″ | blank |
| 3618902 | 3-1/2″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ straight |
| 3618942 | 3-1/2″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ single offset |
| 3618962 | 3-1/2″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ double offset |
| 3620900 | 3-1/2″ | 2-1/4″ | 20″ | 20″ | blank |
| 3620902 | 3-1/2″ | 2-1/4″ | 20″ | 26″ | 2-1/4″ straight |
| 3620942 | 3-1/2″ | 2-1/4″ | 20″ | 26″ | 2-1/4″ single offset |
| 3620962 | 3-1/2″ | 2-1/4″ | 20″ | 26″ | 2-1/4″ double offset |
| 3624900 | 3-1/2″ | 2-1/4″ | 24″ | 24″ | blank |
| 3624902 | 3-1/2″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ straight |
| 3624942 | 3-1/2″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ single offset |
| 3624962 | 3-1/2″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ double offset |
| 3630900 | 3-1/2″ | 2-1/4″ | 30″ | 30″ | blank |
| 3630902 | 3-1/2″ | 2-1/4″ | 30″ | 36″ | 2-1/4″ straight |
| 3712900 | 3-1/2″ | 2-1/2″ | 12″ | 12″ | blank |
| 3712903 | 3-1/2″ | 2-1/2″ | 12″ | 18″ | 2-1/2″ straight |
| 3718900 | 3-1/2″ | 2-1/2″ | 18″ | 18″ | blank |
| 3718903 | 3-1/2″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ straight |
| 3718943 | 3-1/2″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ single offset |
| 3718963 | 3-1/2″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ double offset |
| 3720900 | 3-1/2″ | 2-1/2″ | 20″ | 20″ | blank |
| 3720903 | 3-1/2″ | 2-1/2″ | 20″ | 26″ | 2-1/2″ straight |
| 3720943 | 3-1/2″ | 2-1/2″ | 20″ | 26″ | 2-1/2″ single offset |
| 3720963 | 3-1/2″ | 2-1/2″ | 20″ | 26″ | 2-1/2″ double offset |
| 3724900 | 3-1/2″ | 2-1/2″ | 24″ | 24″ | blank |
| 3724903 | 3-1/2″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ straight |
| 3724943 | 3-1/2″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ single offset |
| 3724963 | 3-1/2″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ double offset |
| 3730900 | 3-1/2″ | 2-1/2″ | 30″ | 30″ | blank |
| 3730903 | 3-1/2″ | 2-1/2″ | 30″ | 36″ | 2-1/2″ straight |
| 4012902 | 4″ | 2-1/4″ | 12″ | 18″ | 2-1/4″ straight |
| 4018902 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ straight |
| 4018942 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ single offset |
| 4018962 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ double offset |
| 4020902 | 4″ | 2-1/4″ | 20″ | 26″ | 2-1/4″ straight |
| 4020942 | 4″ | 2-1/4″ | 20″ | 26″ | 2-1/4″ single offset |
| 4020962 | 4″ | 2-1/4″ | 20″ | 26″ | 2-1/4″ double offset |
| 4024902 | 4″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ straight |
| 4024942 | 4″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ single offset |
| 4024962 | 4″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ double offset |
| 4030902 | 4″ | 2-1/4″ | 30″ | 36″ | 2-1/4″ straight |
| 4512903 | 4″ | 2-1/2″ | 12″ | 18″ | 2-1/2″ straight |
| 4518903 | 4″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ straight |
| 4518943 | 4″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ single offset |
| 4518963 | 4″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ double offset |
| 4520903 | 4″ | 2-1/2″ | 20″ | 26″ | 2-1/2″ straight |
| 4520943 | 4″ | 2-1/2″ | 20″ | 26″ | 2-1/2″ single offset |
| 4520963 | 4″ | 2-1/2″ | 20″ | 26″ | 2-1/2″ double offset |
| 4524903 | 4″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ straight |
| 4524943 | 4″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ single offset |
| 4524963 | 4″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ double offset |
| 4530903 | 4″ | 2-1/2″ | 30″ | 36″ | 2-1/2″ straight |
| 5012900 | 4″ | 3″ | 12″ | 12″ | blank |
| 5012904 | 4″ | 3″ | 12″ | 18″ | 3″ straight |
| 5020900 | 4″ | 3″ | 20″ | 20″ | blank |
| 5020904 | 4″ | 3″ | 20″ | 26″ | 3″ straight |
| 5024900 | 4″ | 3″ | 24″ | 24″ | blank |
| 5024904 | 4″ | 3″ | 24″ | 30″ | 3″ straight |
| 5030900 | 4″ | 3″ | 30″ | 30″ | blank |
| 5030904 | 4″ | 3″ | 30″ | 36″ | 3″ straight |
Header Glass Packs
Red painted steel, 24″ body, 3-1/2″ shell. For vehicles with headers.
| Part # | Size | |
| 3524-88 | for 2-1/2″ header collector | 2-1/4″ id outlet |
| 3524-99 | for 3″ header collector | 2-1/4″ id outlet |

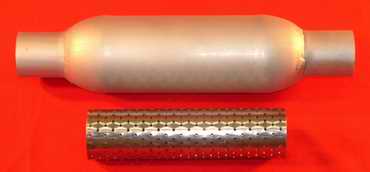

Aluminized Flow Packs
These are straight-through glass packs with a stainless steel perforated core. 100% aluminized shell and ends with long-strand high-temp fiberglass. Available with 4″ shells, and 2-1/4″, 2-1/2″, and 3″ cores (3-1/2″ with 2″ available via special order). Mufflers with ends are expandable. Expansion joint prevents premature core breakage. Recommended for race applications, or as a resonator or secondary muffler. Single and double offset also available via special order.
Our highest flowing, yet loudest muffler.
| Part # | Core size | Body length | OAL | Inlet/outlet |
| 4212600 | 2-1/4″ | 12″ | 12″ | blank |
| 4212602 | 2-1/4″ | 12″ | 18″ | 2-1/4″ straight |
| 4218600 | 2-1/4″ | 18″ | 12″ | blank |
| 4218602 | 2-1/4″ | 18″ | 24″ | 2-1/4″ straight |
| 4224600 | 2-1/4″ | 24″ | 24″ | blank |
| 4224602 | 2-1/4″ | 24″ | 30″ | 2-1/4″ straight |
| 4312600 | 2-1/2″ | 12″ | 12″ | blank |
| 4312603 | 2-1/2″ | 12″ | 18″ | 2-1/2″ straight |
| 4318600 | 2-1/2″ | 18″ | 18″ | blank |
| 4318603 | 2-1/2″ | 18″ | 24″ | 2-1/2″ straight |
| 4324600 | 2-1/2″ | 24″ | 24″ | blank |
| 4324603 | 2-1/2″ | 24″ | 30″ | 2-1/2″ straight |
| 4412600 | 3″ | 12″ | 12″ | blank |
| 4412604 | 3″ | 12″ | 18″ | 3″ straight |
| 4418600 | 3″ | 18″ | 18″ | blank |
| 4418604 | 3″ | 18″ | 24″ | 3″ straight |
| 4424600 | 3″ | 24″ | 24″ | blank |
| 4424604 | 3″ | 24″ | 30″ | 3″ straight |
Stainless Steel Flow Packs
These are straight-through glass packs with a 400 series stainless steel perforated core. 100% 304 stainless shell and ends with long-strand high-temp fiberglass. Available with 4″ shells, and 2-1/4″, 2-1/2″, and 3″ cores (3-1/2″ available via special order). Mufflers with ends are expandable. Expansion joint prevents premature core breakage. Recommended for race applications, or as a resonator or secondary muffler. Single and double offset also available via special order. Our highest flowing, yet loudest muffler. These come bright annealed but unpolished 304 stainless steel ends and necks. Special lengths and sizes may be ordered. Most of these items are not stocked and may require additional lead time, our popular numbers are listed below. Polishing by us is available at additional cost.
| Part # | Shell | Core size | Body length | OAL | Inlet/outlet |
| 4612900 | 3-1/2″ | 2″ | 12″ | 12″ | blank |
| 4612901 | 3-1/2″ | 2″ | 12″ | 18″ | 2″ straight |
| 4618900 | 3-1/2″ | 2″ | 18″ | 18″ | blank |
| 4618901 | 3-1/2″ | 2″ | 18″ | 24″ | 2″ straight |
| 4624900 | 3-1/2″ | 2″ | 24″ | 24″ | blank |
| 4624901 | 3-1/2″ | 2″ | 24″ | 30″ | 2″ straight |
| 4712900 | 3-1/2″ | 2-1/4″ | 12″ | 12″ | blank |
| 4712902 | 3-1/2″ | 2-1/4″ | 12″ | 18″ | 2-1/4″ straight |
| 4718900 | 3-1/2″ | 2-1/4″ | 18″ | 18″ | blank |
| 4718902 | 3-1/2″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ straight |
| 4724900 | 3-1/2″ | 2-1/4″ | 24″ | 24″ | blank |
| 4724902 | 3-1/2″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ straight |
| 4812900 | 3-1/2″ | 2-1/2″ | 12″ | 12″ | blank |
| 4812903 | 3-1/2″ | 2-1/2″ | 12″ | 18″ | 2-1/2″ straight |
| 4818900 | 3-1/2″ | 2-1/2″ | 18″ | 18″ | blank |
| 4818903 | 3-1/2″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ straight |
| 4824900 | 3-1/2″ | 2-1/2″ | 24″ | 24″ | blank |
| 4824903 | 3-1/2″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ straight |
| 4212902 | 4″ | 2-1/4″ | 12″ | 18″ | 2-1/4″ straight |
| 4218902 | 4″ | 2-1/4″ | 18″ | 24″ | 2-1/4″ straight |
| 4224902 | 4″ | 2-1/4″ | 24″ | 30″ | 2-1/4″ straight |
| 4312903 | 4″ | 2-1/2″ | 12″ | 18″ | 2-1/2″ straight |
| 4318903 | 4″ | 2-1/2″ | 18″ | 24″ | 2-1/2″ straight |
| 4324903 | 4″ | 2-1/2″ | 24″ | 30″ | 2-1/2″ straight |
| 4412900 | 4″ | 3″ | 12″ | 12″ | blank |
| 4412904 | 4″ | 3″ | 12″ | 18″ | 3″ straight |
| 4418900 | 4″ | 3″ | 18″ | 18″ | blank |
| 4418904 | 4″ | 3″ | 18″ | 24″ | 3″ straight |
| 4424900 | 4″ | 3″ | 24″ | 24″ | blank |
| 4424904 | 4″ | 3″ | 24″ | 30″ | 3″ straight |
Stainless Steel Smooth Tube Mufflers
These one-piece shell mufflers have the ends shrunk to the appropriate size in/out. 3-1/2″ od 304 polished stainless steel shell, louvered stainless steel core with heat expansion joint to prevent core breakage and high-temp fiber glass packing. Aggressive sounding, long-lasting, nice-looking performance glass packs. The necks are not expandable, other sizes, lengths and aluminized steel available via special order.
| Part # | Body | OAL | Core | In/Out |
| 3618902ST | 18″ | 24″ | 2-1/4″ | 2-1/4″ |
| 3718903ST | 18″ | 24″ | 2-1/2″ | 2-1/2″ |
| 3818904ST | 18″ | 24″ | 3″ | 3″ |

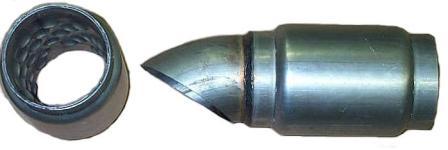

Race Mufflers
These are shaped like a glass pack body with a 5″ shell, 6″ body length, 4″ spiral louvered core, one-piece shell design, packed with high temp fiber glass. The muffler with the turn out will help with sound control more so than the muffler without the turn out end. These mufflers flow very well, and provide a minimum amount of sound control, and are not recommended for street use. They must be welded to your exhaust pipe, and are made of aluminized steel. 6019430 and 6019435 have six discs inside, turndowns, are more restrictive, but quieter, unpacked, designed mostly for circle track racing, black painted steel.
| Part # | Core | Body length | OAL | Inlet/outlet | CFM |
| 4006003 | 3″ | 6″ | 6″ | 3″ | |
| 40060031 | 3″ | 6″ | 12″ | 3″ id in/3″ turn out | |
| 40060035 | 3-1/2″ | 6″ | 6″ | 3-1/2″ | |
| 400600351 | 3-1/2″ | 6″ | 13″ | 3-1/2″ id in/3-1/2″ turn out | |
| 5006004 | 4″ | 6″ | 8″ | 4″ id | 795 cfm @ 10″ water |
| 50060041 | 4″ | 6″ | 13-1/2″ | 4″ id in/4″ turn out | 690 cfm @ 10″ water |
| 6019430 | 6 discs | 12″ | 21-1/2″ | 3″ id in/3″ turn out | |
| 6019435 | 6 discs | 12″ | 21-1/2″ | 3-1/2″ id in/3″ turn out |
Aluminized Dual Tube Mufflers
These are shaped like a glass pack body, but have the cores of a standard muffler. 4″ shell size only in all applications. Note: size inside the muffler is restricted to 1-3/4″ exhaust flow, and these mufflers are not recommended for high horsepower applications. Recommended for either dual exhaust on lower horsepower applications where space is a concern, or smaller motors as a resonator. These mufflers are reversible.
| Part # | Body length | OAL | Inlet/outlet |
| 4115501 | 15″ | 21″ | 2″ straight |
| 4115502 | 15″ | 21″ | 2-1/4″ straight |
| 4115505 | 15″ | 21″ | 2-1/4″ to 2″ straight |
| 4115533 | 15″ | 21″ | 1-3/4″ straight |
| 4115576 | 15″ | 21″ | 1-1/2″ straight |
| 4118501 | 18″ | 24″ | 2″ straight |
| 4118502 | 18″ | 24″ | 2-1/4″ straight |
| 4118505 | 18″ | 24″ | 2-1/4″ to 2″ straight |
| 4118509 | 18″ | 24″ | 2-1/2″ to 2″ straight |
| 4118541 | 18″ | 24″ | 2″ single offset |
| 4118542 | 18″ | 24″ | 2-1/4″ single offset |
| 4118561 | 18″ | 24″ | 2″ double offset |
| 4118562 | 18″ | 24″ | 2-1/4″ double offset |
| 4124501 | 24″ | 30″ | 2″ straight |
| 4124502 | 24″ | 30″ | 2-1/4″ straight |
| 4124505 | 24″ | 30″ | 2-1/4″ to 2″ straight |
| 4124509 | 24″ | 30″ | 2-1/2″ to 2″ straight |
